Deploy comprehensive reinforcement details

With one click, all components from beams, floors, columns to foundations are deployed in seconds.

Beam –Enter dimensions from the plan or manually, arrange main steel, stirrup steel, and intersection beams.

Floor –Spread steel floors right on the ground, export cross-sections, and customize the display of steel details.

Column -Enter size, main steel, stirrup steel, round column, steel cutting parameters.

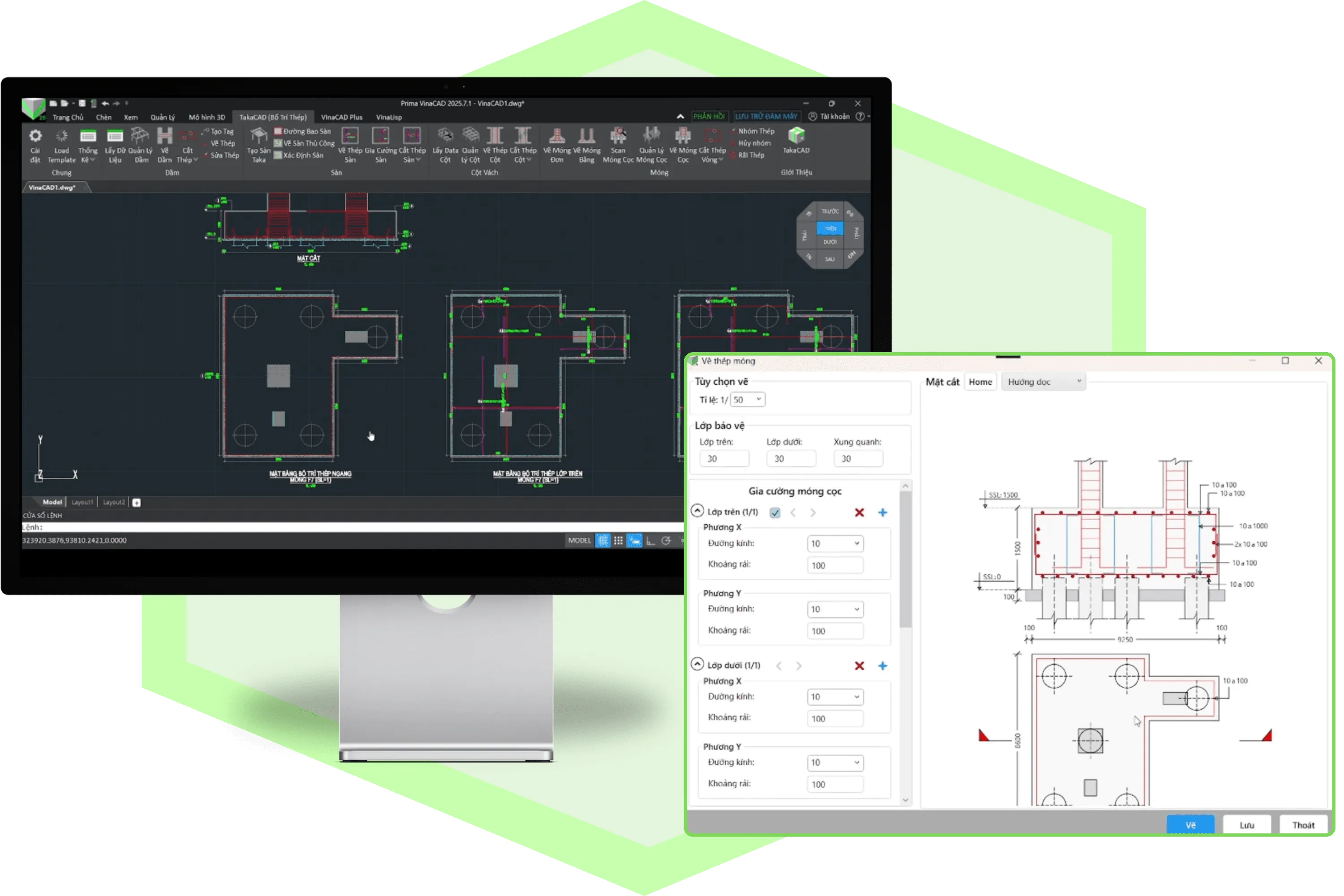

Foundation –Single foundation, strip foundation, pile foundation automates steel layout and parameter configuration.

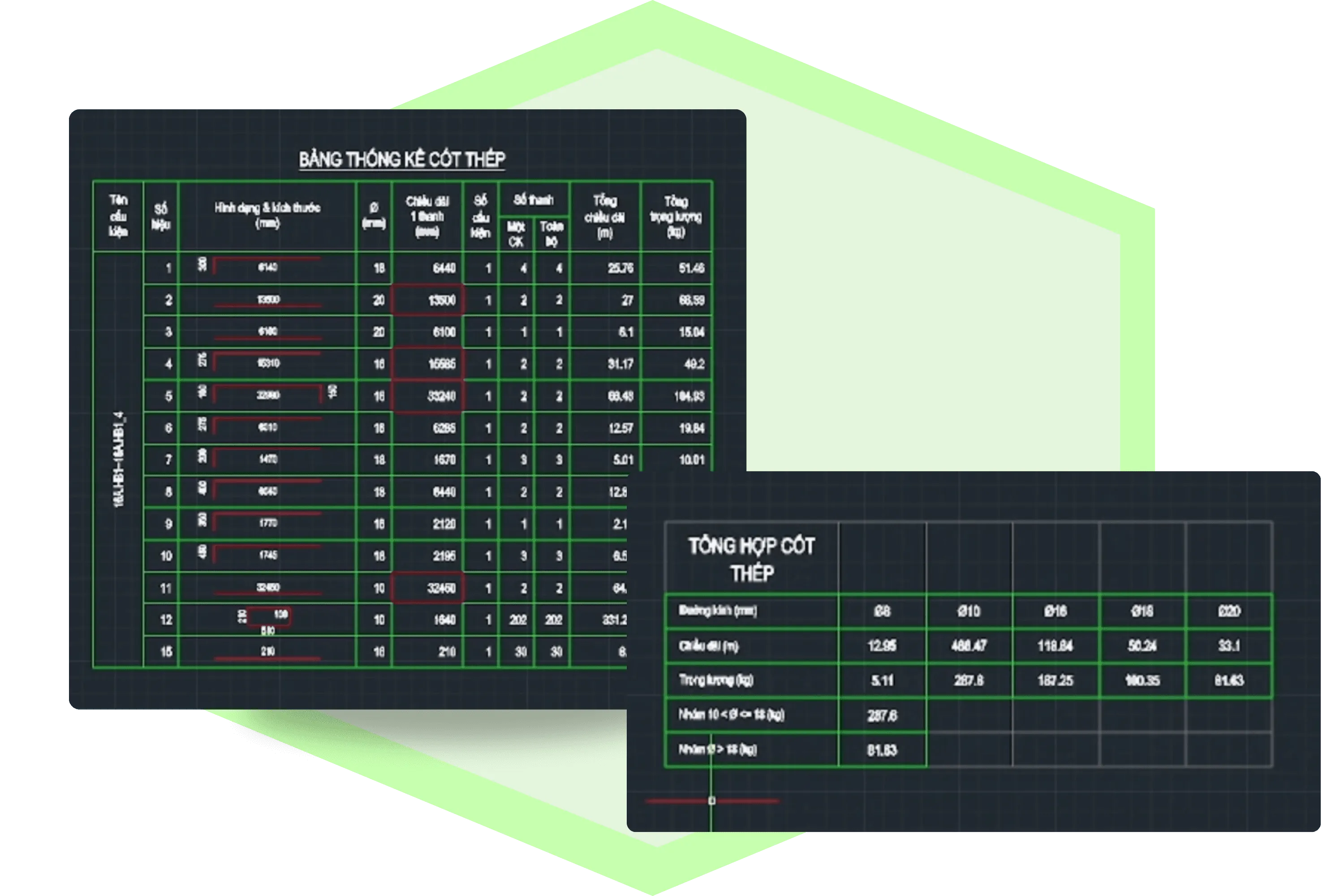

Steel statistics quickly and accurately

Automatically calculate the total volume of steel and components

Export standard statistical tables right on the drawing.

Option to export Excel files for external management.

Make sure the data matches actual construction.

Case Study - TakaCAD changes the way structural drawings are deployed in large projects

Let's explore practical sharing from leading engineers and experts when applying TakaCAD to large-scale projects to helpIncrease speed, reduce errors and standardize the process of deploying reinforcement details.

TakaCAD - Top choice for structural engineers

 Integrated on VinaCAD platform, creating a comprehensive copyright ecosystem

 24/7 support team of engineers/experts:https://zalo.me/g/yzbtgi877

 Developed by TGL Solutions - Vietnam's leading company in Construction digital transformation
